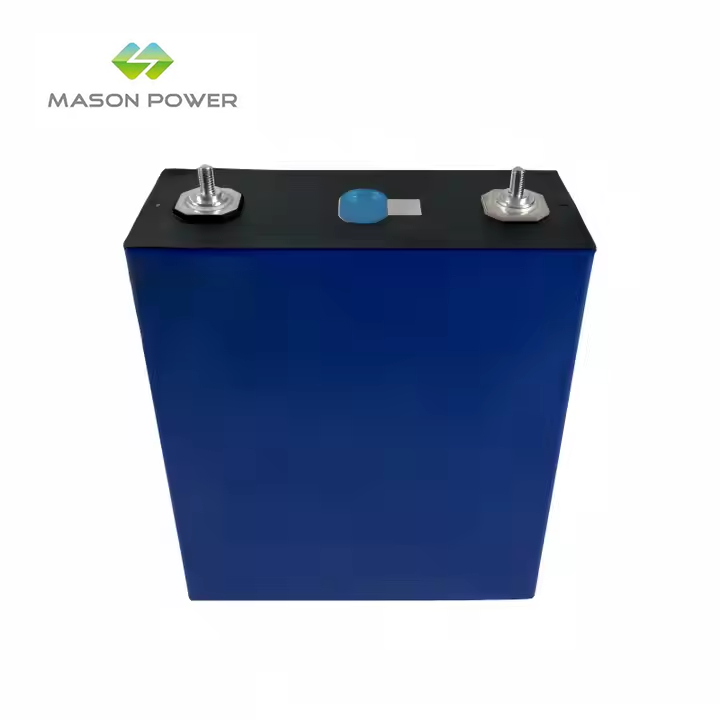

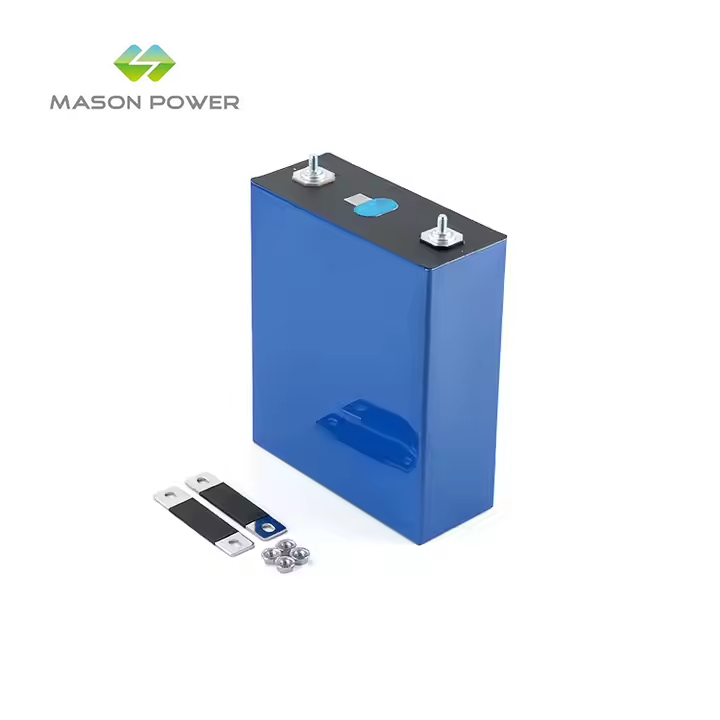

Semi Solid State 3.2V 280Ah Prismatic LiFePO4 Battery Cell

Semi Solid State 3.2V 280Ah Prismatic LiFePO4 Battery Cell

Solid-state batteries are a type of battery that uses solid electrolytes. Compared with traditional liquid batteries, they have the following advantages:

1. High safety: solid electrolytes are non-flammable and non-volatile, which can effectively reduce the risk of thermal runaway of batteries and reduce the risk of leakage.

2. High energy density: It can be adapted to high-capacity electrode materials, such as metal lithium negative electrodes, and has a compact internal structure and high space utilization, which can improve the overall energy density of the battery.

3. Good cycle performance: solid electrolytes can inhibit the volume change and side reactions of electrode materials during charging and discharging, and extend the battery cycle life.

4. Low self-discharge rate: solid electrolytes have good chemical stability, which can reduce the self-discharge reaction rate and reduce the power loss of batteries during long-term storage.

5. Wide operating temperature range: In high and low temperature environments, the performance of solid-state batteries is relatively stable, and they can maintain good charging and discharging efficiency at low temperatures, and are not prone to thermal stability problems at high temperatures.

6. High design flexibility: The shape of solid-state batteries can be customized according to needs, which is convenient for integration into equipment with different shapes and space requirements, providing more possibilities for product design.

Key Features

Compared with traditional lithium batteries, solid-state batteries have the following advantages:

• High safety: thermal stability is greatly improved, and it can withstand extreme situations such as puncture and cutting, which can eliminate the risk of thermal runaway. Reduce the risk of short circuit.

• High energy density: solid-state batteries are compatible with positive and negative electrode materials with high specific capacity, up to 400-500Wh/kg, and may even exceed 600Wh/kg in the future. The internal space utilization rate is high, and more dense electrolytes can be stuffed into it, shortening the distance between the positive and negative electrodes, reducing the volume, and increasing the energy density.

• Long cycle life: The solid electrolyte has strong stability, so that the battery life can reach 2000-5000 cycles, while traditional lithium batteries are about 1000-2000 times.

• Fast charging speed: The charging speed is 4-6 times faster than the liquid state, and the goal is to achieve "80% charging in 10 minutes". Its unique electrolyte structure makes the transmission efficiency of electrons and ions higher, which not only speeds up the charging speed, but also reduces the risk of overheating.

• Wide application temperature range: solid electrolytes are difficult to burn even at 200°C, can withstand high temperatures of 150°C, can work normally at low temperatures of -40°C, and can output stably in high and low temperature environments.

• High battery plasticity: All-solid-state batteries have increased flexibility after being made thinner and lighter, and can withstand hundreds to thousands of bends without sacrificing performance. They can be made into different shapes to meet the needs of different devices.

Tech Specs

Name:3.2V-SSL-Batteries

Type:Solid State Battery

Nominal voltage:3.2V

Max voltage:3.65V

Min voltage:2.5V

Nominal capacity:280Ah

Rated Energy:896Wh

Maximum continuous discharge:280A

Maximum charge current:90A

Weight:5.5kg

Dimensions(LXWXH):207.1x71.1x174.2mm

Warranty:5 Year Limited Warranty

Applications

Solid-state batteries have been widely used in many fields due to their many advantages:

• Electric vehicle field: they can provide higher energy density, increase driving range, and have high safety, which can reduce the risk of electric vehicle fires and meet consumers' needs for driving range and safety.

• Consumer electronics field: such as mobile phones, laptops, etc., can achieve a lighter and thinner design, while providing a long-lasting power supply and improving the product experience.

• Aerospace field: its high energy density and good safety can help reduce the weight of aircraft, increase range and payload, and meet the strict requirements of aerospace for battery performance.

• Energy storage field: used for grid energy storage, home energy storage, etc., the stability and long cycle life of solid-state batteries can ensure the efficient and safe operation of energy storage systems and improve energy utilization efficiency.

• Military field: it can be applied to various military equipment, such as portable electronic devices, drones, etc., can adapt to complex and harsh battlefield environments, and provide reliable power guarantee.

View full details
  •  Cell & Pack Design

    We can design the cell chemistry and pack layout to meet specific size, weight, and power requirements.

  •  Connector & Wiring

    Choose from a variety of connectors including XT60, XT90, AS150U, QS8, and custom wiring harnesses.

  •  Labeling & Branding

    We offer private labeling services to match your brand identity.

  •  Small Batch Prototyping

    Fast turnaround on samples for testing and validation before mass production.

  •  Strict Quality Control

    100% testing on voltage, internal resistance, and capacity before shipment.

  •  Professional Packaging

    Shockproof packaging ensures safe delivery.

Frequently Asked Questions

What is the minimum order quantity (MOQ) for battery packs?

Sample orders: 1-10 pcs for evaluation and testing. Bulk orders: MOQ starts from 100 pcs for standard models, negotiable for custom configurations.

What is your monthly production capacity?

Cylindrical battery packs: 1,000,000 units/month. Soft pack and solid state battery packs: 500,000 units/month.

How do you control quality?

100% cell sorting, capacity grading, and internal resistance matching
100% voltage and IR testing before assembly
100% functional testing after assembly (charge/discharge cycle, protection test)
Every pack undergoes rigorous testing before shipment
Full traceability with unique QR code per pack

Do you offer samples?

Yes. Sample orders are welcome for testing and validation. Samples can be shipped from our overseas warehouses for faster delivery.

How do I get a quote?

Please send your requirements including voltage, capacity, discharge rate, dimensions, connector type, and quantity. We will reply within 1 hours with a detailed quotation.
