Mason Power 550Wh/kg Anode Free Cell 3.8V 16Ah 120g Ultra Light 5C/6C Samples Available for FPV Freestyle and Long Range Drones

Name: Mason Power 550Wh/kg Anode Free Cell 3.8V 16Ah 120g Ultra Light 5C/6C Samples Available for FPV Freestyle and Long Range Drones
Brand: MasonPower
Availability: InStock

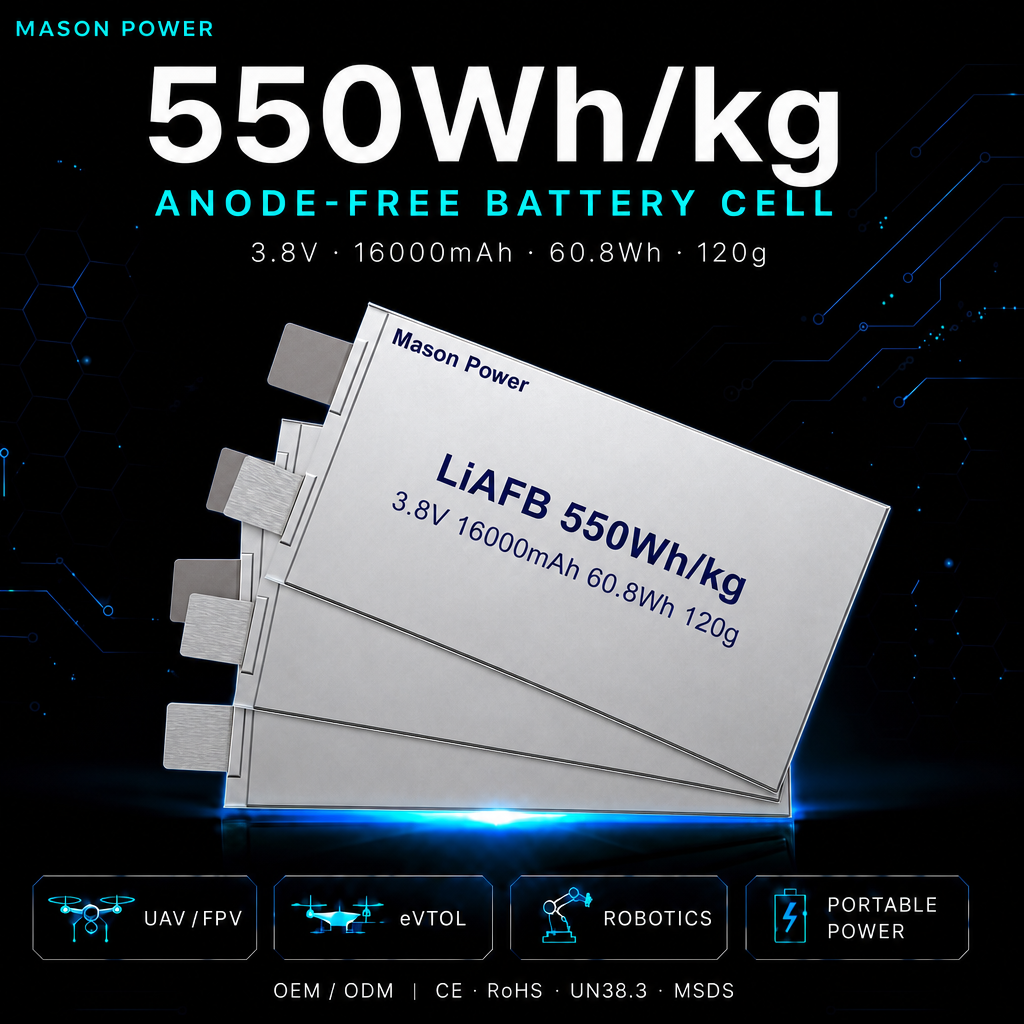

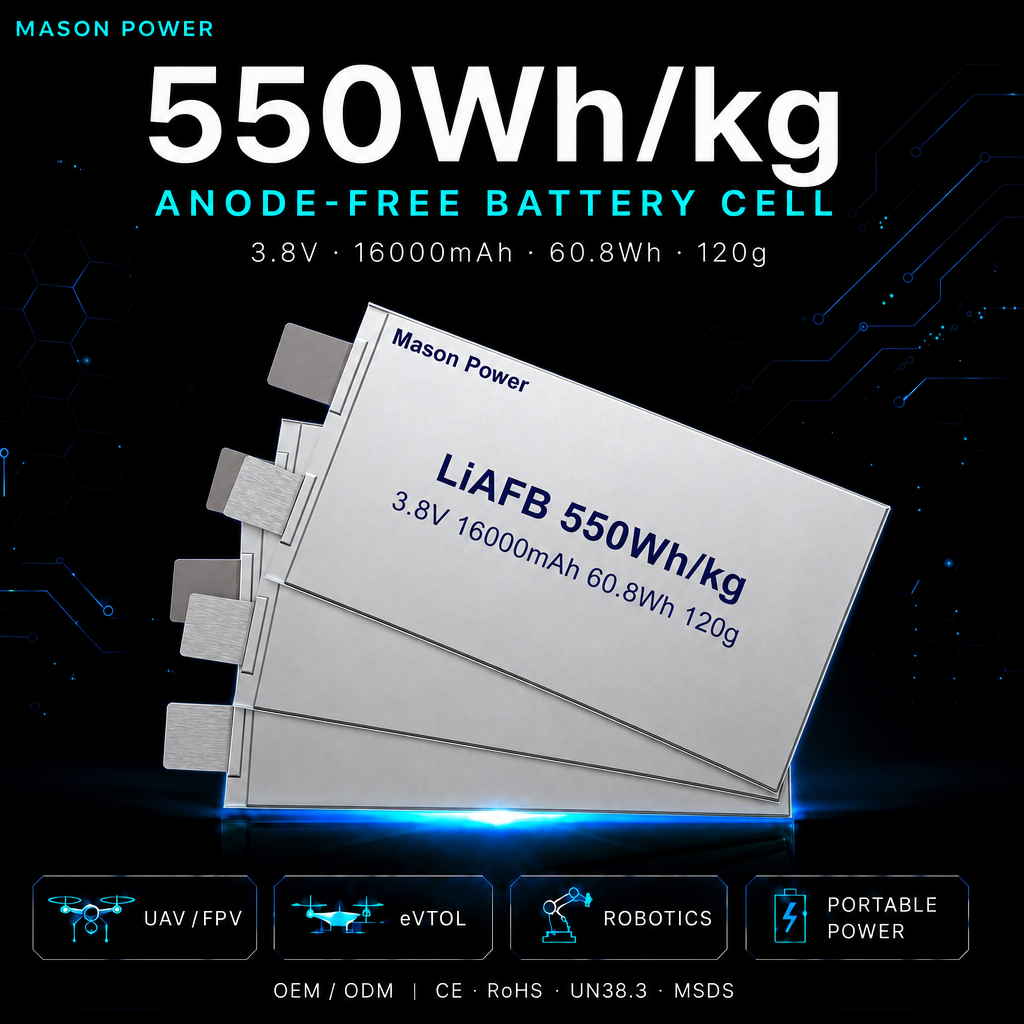

Mason Power 550Wh/kg Anode Free Cell 3.8V 16Ah 120g Ultra Light 5C/6C Samples Available for FPV Freestyle and Long Range Drones

Simpler Architecture. Higher Density. Unmatched Output.

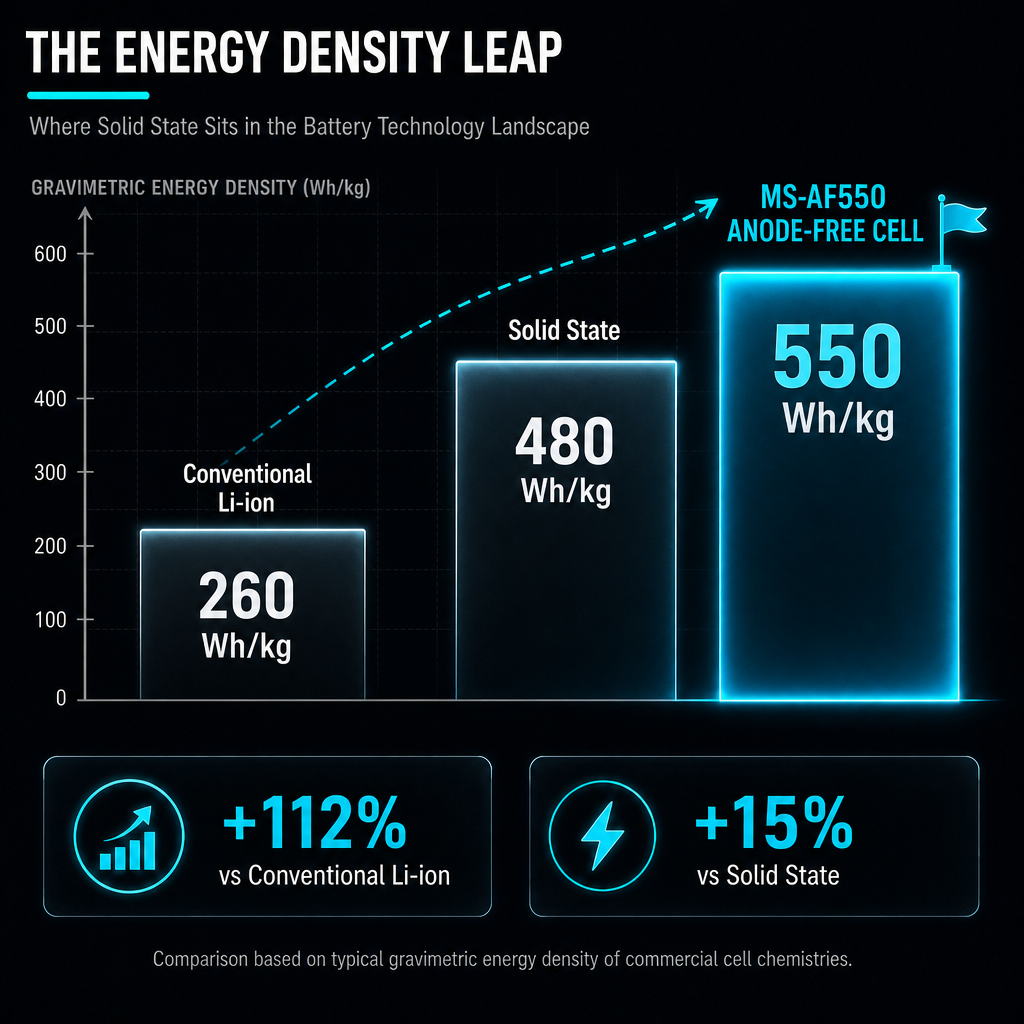

The MASON POWER Anode-Free Ultra-Series represents a fundamental breakthrough in lithium battery design. We have simplified the cell architecture while simultaneously pushing gravimetric energy density to an unprecedented 550Wh/kg.

But density is only half the story. This cell delivers a 5C continuous discharge rate (6C burst), making it one of the highest-power anode-free cells available today. With a nominal voltage of 3.8V and a wide operating window spanning 3.0V to 4.3V, it offers exceptional flexibility for system designers who need both high energy and high power in a single package.

At just 120g and measuring 7.1 × 50 × 130mm, this 16,000mAh cell redefines what's possible in weight-sensitive applications. Every gram is optimized for maximum energy delivery, making it the ideal power source for next-generation compact UAVs, portable devices, and aerospace platforms where space and weight are the ultimate constraints.

Key Features

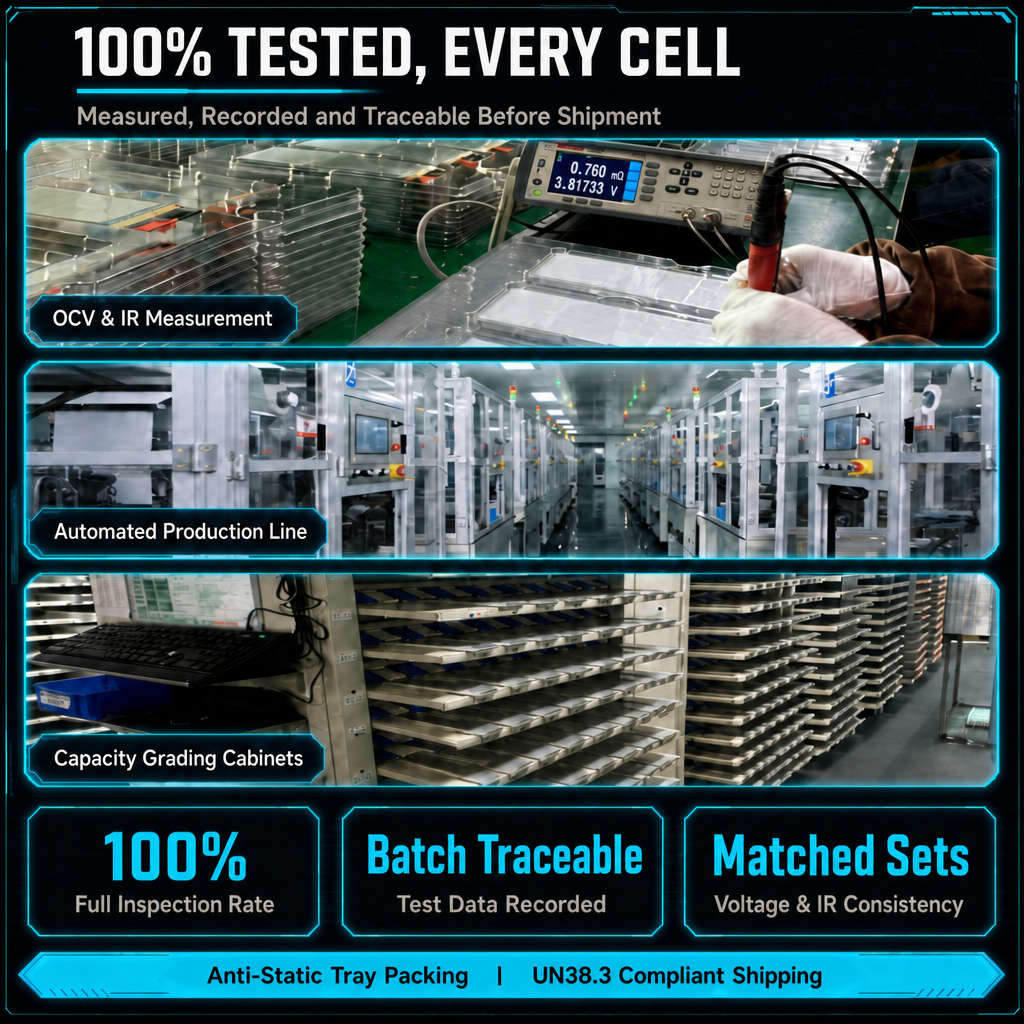

1.Grade A Cells Only – We never mix grades. All cells are fully tested and verified before shipment
2.Daily Output: 150,000 Cells – Reliable supply for high‑volume production
3.Global Stock – EU, USA, AU warehouses for fast delivery
4.OEM/ODM Ready – Custom tab configurations, packaging, and labeling for volume orders
5.Engineering Support – Technical assistance for custom pack design and system integration

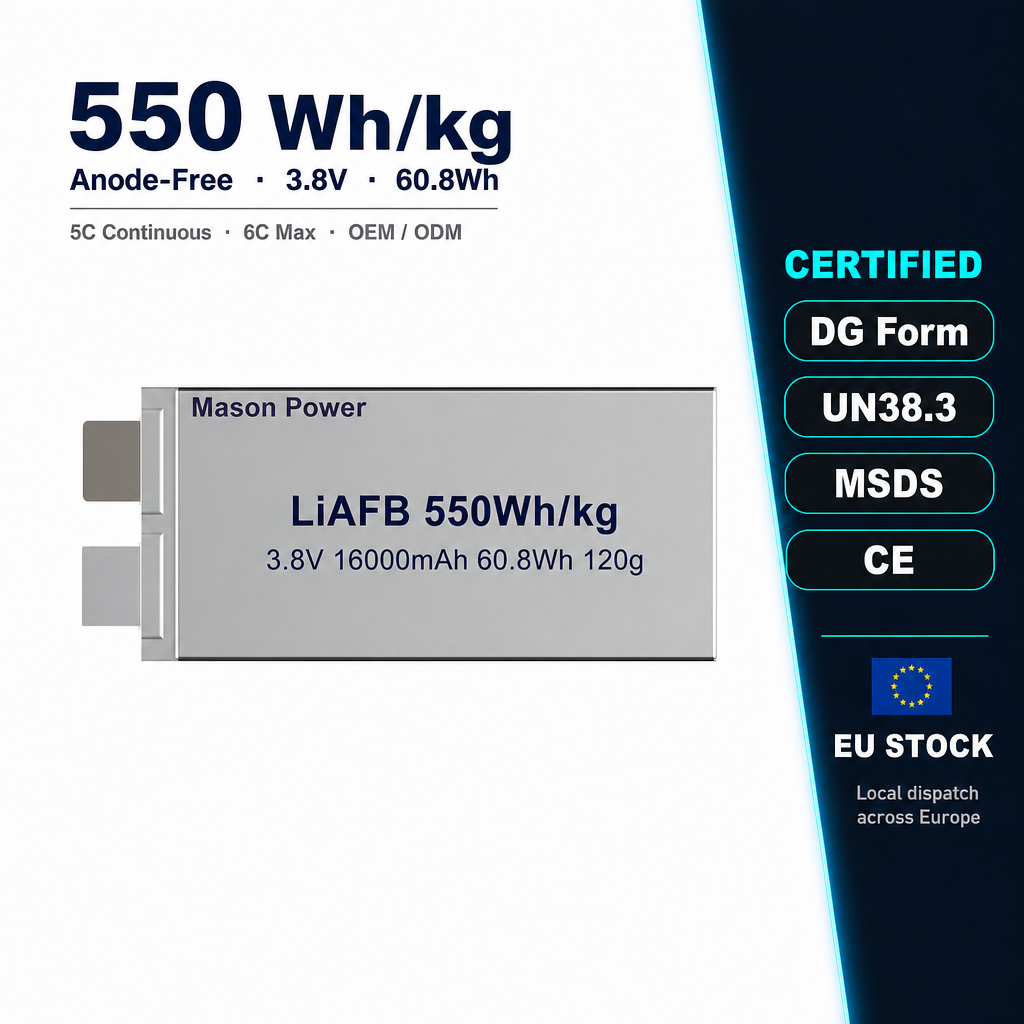

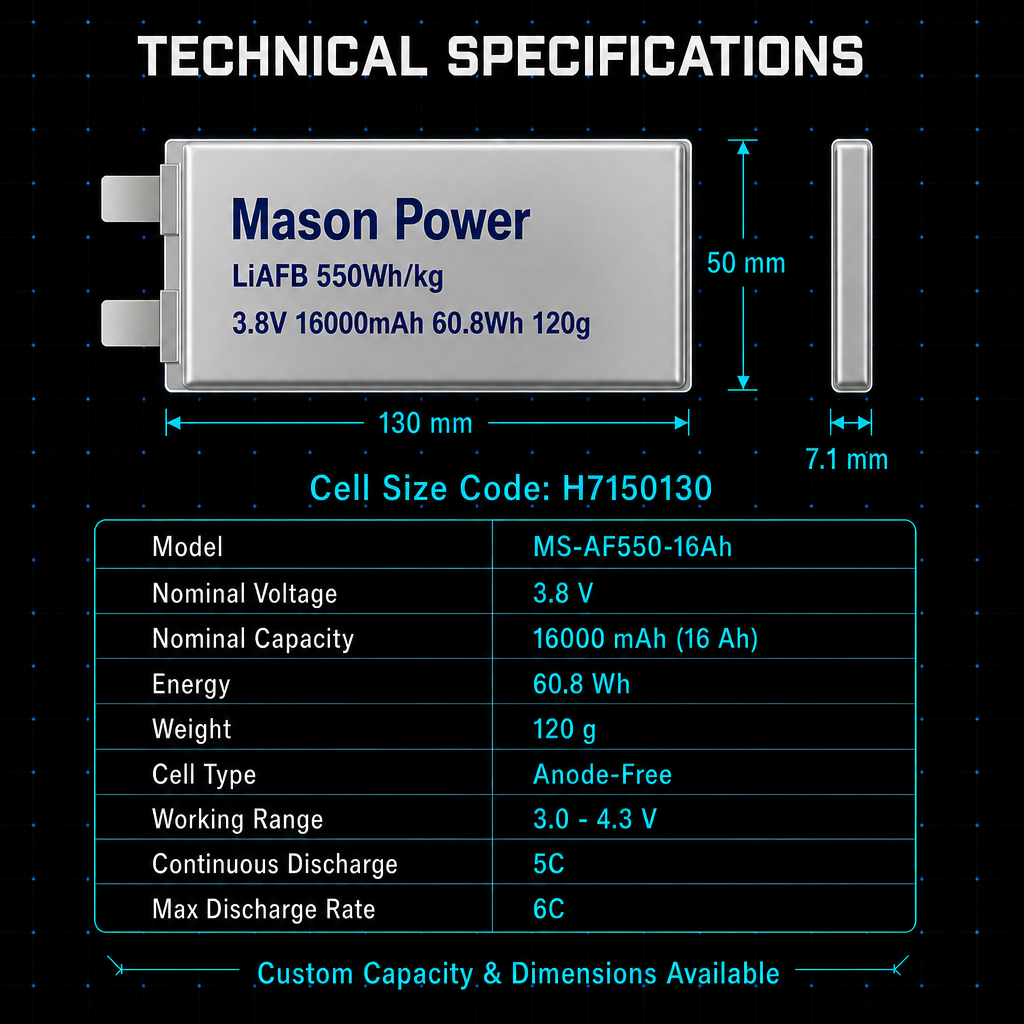

Tech Specs

Model Code: MS-AF550-16Ah
Type: Anode-Free High-Energy Cell
Energy Density: ≥ 550 Wh/kg
Nominal Voltage: 3.8 V
Operating Range: 3.0 – 4.3 V
Nominal Capacity: 16000 mAh
Continuous Discharge: 5C
Max. Burst Discharge: 6C
Dimensions: 7.1 × 50 × 130
Weight: 120 g

Applications

1.FPV Long Range
2.FPV Endurance Racing and Exploration
3.Lightweight VTOL Platforms
4.Cinematic FPV and Professional Aerial Imaging
5.Search and Rescue (SAR) Long Range Drones
6.Long Endurance Survey and Inspection UAVs
