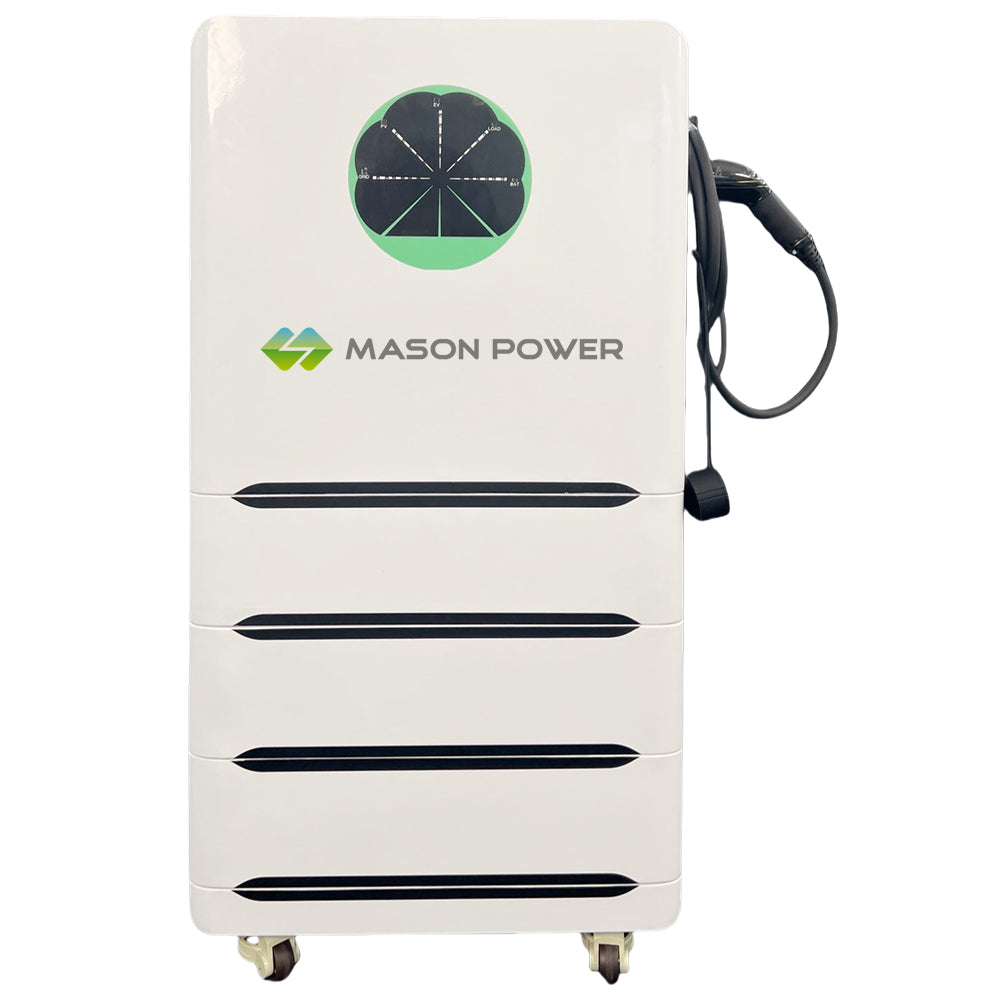

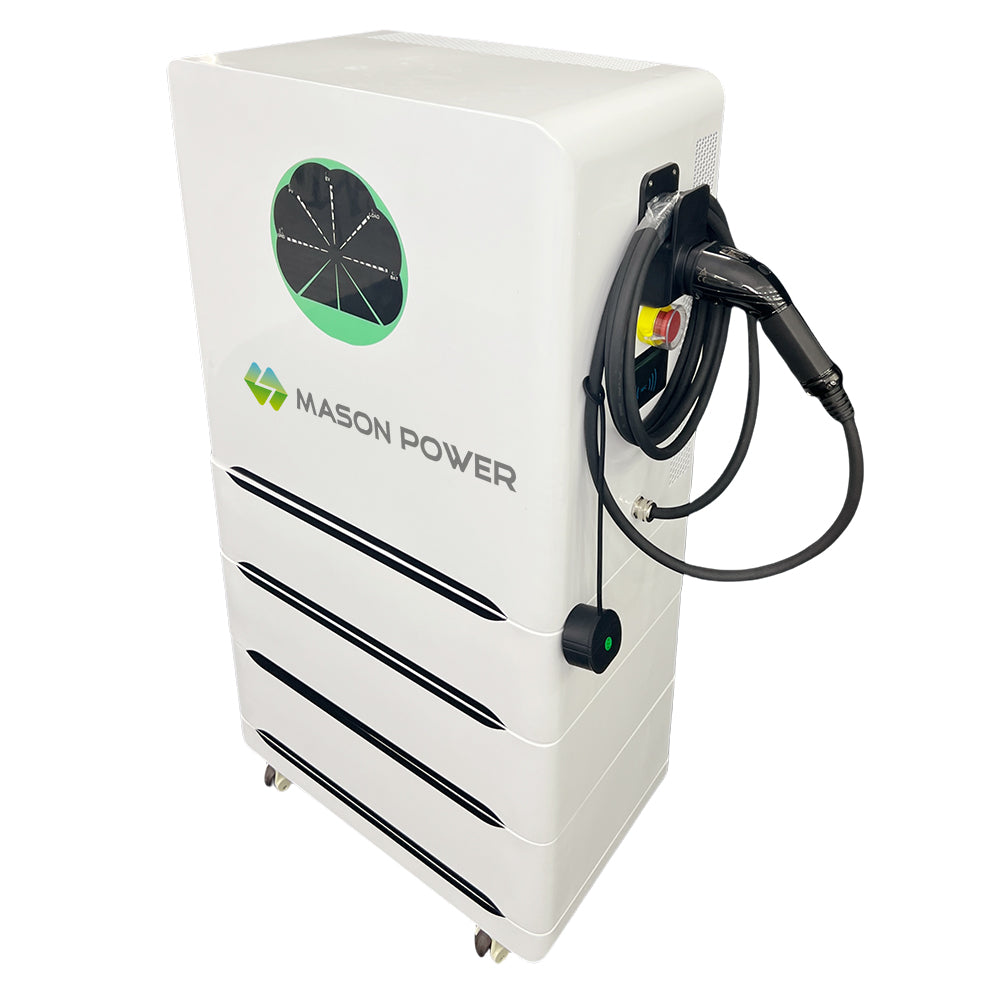

5+20 Solar Storage Charging All-in-One System

5+20 Solar Storage Charging All-in-One System

The 5+20 Solar Storage Charging All-in-One System is a versatile and efficient energy solution designed for residential applications such as villas and houses. This system combines solar energy storage, charging, and power management into a single unit, featuring advanced LFP battery technology for superior energy density and long cycle life. With its stackable design and customizable Battery Management System (BMS), this all-in-one system offers flexibility, scalability, and ease of installation, making it an ideal choice for modern energy needs.

Key Features

  • Capacity: Modular design with a 5.12kWh battery per module, scalable up to 30kWh.
  • Battery Type: Lithium Iron Phosphate (LFP) for enhanced safety, energy density, and longevity.
  • Safety: Equipped with a comprehensive BMS for protection against overcharge, over-discharge, overcurrent, and environmental extremes.
  • Inverter Power: 5000W inverter ensures reliable power conversion and management.
  • Charging: Features a 7kW AC charging gun with NFC/APP interaction for convenient operation.
  • Efficiency: Direct current (DC) coupling design for higher efficiency and integrated over-voltage and lightning protection.
  • Installation: Stackable and easy to install, ideal for flexible energy management.
  • Communication: Supports user interaction through NFC or app-based control, enhancing user experience.

Tech Specs

  • Model: 5+20 Solar Storage Charging All-in-One System
  • Battery Configuration: 1P16S
  • Nominal Capacity: 100Ah per module
  • Nominal Energy: 5.12kWh per module, expandable up to 30kWh
  • Nominal Voltage: 51.2V DC
  • Charging Voltage: 56.8V or 3.55V per cell
  • Internal Resistance: ≤60mΩ
  • Standard Charging Current: 90A
  • Standard Discharge Current: 90A
  • Discharge Cut-off Voltage: 43.2V
  • Charge Temperature: 0℃ to 55℃
  • Discharge Temperature: -20℃ to 55℃
  • Storage Temperature: -20℃ to 60℃ (recommended ≤90%RH)
  • Protection Rating: IP65 for battery modules, IP54 for the system
  • Inverter Power: 5000W
  • AC Input/Output Voltage: 220V (50-60Hz)
  • MPPT Voltage Range: 120-500V
  • Stackable Units: 1-6 modules (5.12kWh each)
  • Cooling: Natural cooling
  • Dimensions (W x D x H): 640mm x 380mm x 1750mm
  • Weight: 370kg

Applications

  • Ideal for residential energy storage and management in villas and houses.
  • Scalable energy storage for solar power integration.
  • Efficient energy management and backup power solution for homes.
View full details

Why Choose Us?

  • Experience

    Years of industry experience ensure top-tier solutions.

  • Technology

    Cutting-edge LFP batteries for efficiency and durability.

  • Customization

    Tailored OEM and ODM services to meet your exact needs.

  • Support

    Comprehensive assistance from installation to maintenance.

  • Sustainability

    Eco-friendly solutions reducing carbon footprints.

  • Reliability

    Proven, rigorously tested products for lasting performance.

Frequently Asked Questions

What types of batteries are used in MasonPower’s energy storage systems?

MasonPower uses advanced Lithium Iron Phosphate (LFP) batteries, known for their high energy density, safety, and long cycle life.

Can MasonPower’s energy storage systems be customized to specific needs?

Yes, MasonPower offers customizable solutions through our OEM and ODM services to meet your specific energy storage requirements.

How does MasonPower ensure the safety of its energy storage products?

Our systems feature advanced Battery Management Systems (BMS) that monitor and protect against overcharge, over-discharge, and other safety risks.

What kind of warranty does MasonPower provide for its products?

MasonPower offers robust warranties, typically ranging from 5 to 10 years, depending on the product, ensuring long-term reliability.

Are MasonPower’s energy storage systems compatible with solar panels?

Absolutely. Our systems are designed to seamlessly integrate with solar panels, maximizing the use of renewable energy in your setup.
