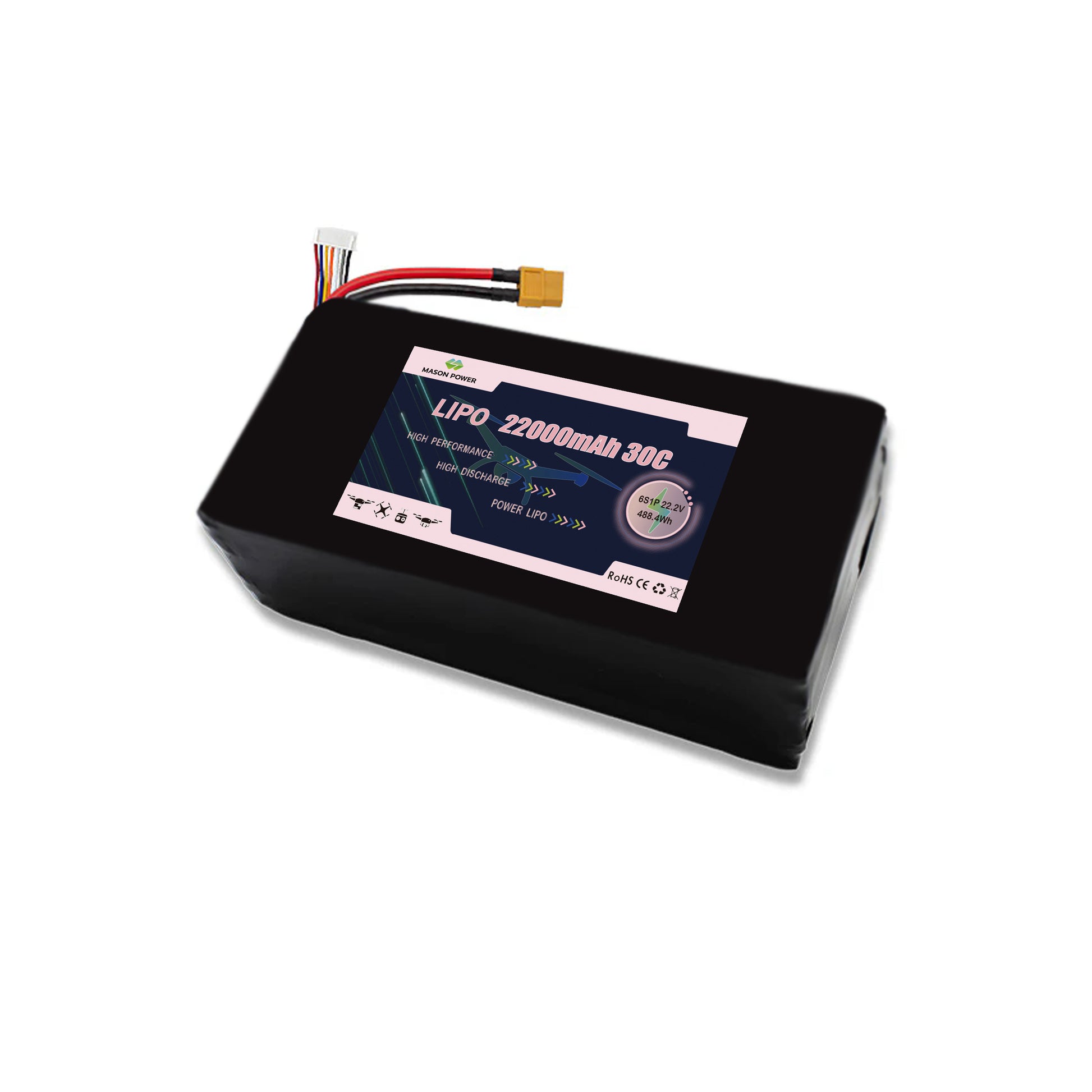

22.2V 30C 6S 22000mAh Lipo Battey Pack For Race FPV Drone

22.2V 30C 6S 22000mAh Lipo Battey Pack For Race FPV Drone

Our FPV/Drone NCM LiPo battery is designed for Racing Drone, Aerial Photography, Agricultural Drone, Logistics & Transportation, etc. It uses NCM/NCA as the positive electrode material, with the advantages of high energy density, high discharge rate and long life. It can meet the ultimate requirements of drones for endurance, power and convenience.

ISO 9001, NDAA compliant; Dangerous goods certified; Proprietary high current Mason Power assembly process; Factory fresh grade A cells; Voltage matched cells; Grade A pure copper wire(wire gauge depending on connector choice); Silicone wire jacketing; Military grade assembly; Standard battery comes with Polyvinyl Chloride(PVC) outer layer; Your choice of connectors and wire length; Overnight shipping available

Key Features

1. High Energy Density Advantage - perfect balance between endurance and light weight, with the same energy, only 1/3 of lead-acid battery
2. High Rate Discharge - core guarantee for dynamic flight, 10C-160C optional
3. Long Cycle Life - reduce the cost of use, 500-1500 optional
4. Wide Temperature Range Adaptability - stable output in complex environment, -20~55℃ temperature range
5. Environmental Protection & Portability Advantages - NCM recyclability rate exceeds 90%, waterproof and dustproof design, LiPo/li-ion optional

Tech Specs

Name：22.2V-NCM-Batteries

Type：LiPo Battery

Nominal voltage：22.2V

Max voltage：25.2V

Min voltage：18V

Nominal capacity：22000mAh

Rated Energy：488.4Wh

Maximum continuous discharge：660A

Maximum charge current：110A

Weight：2524g

Energy Density:：193.5Wh/kg

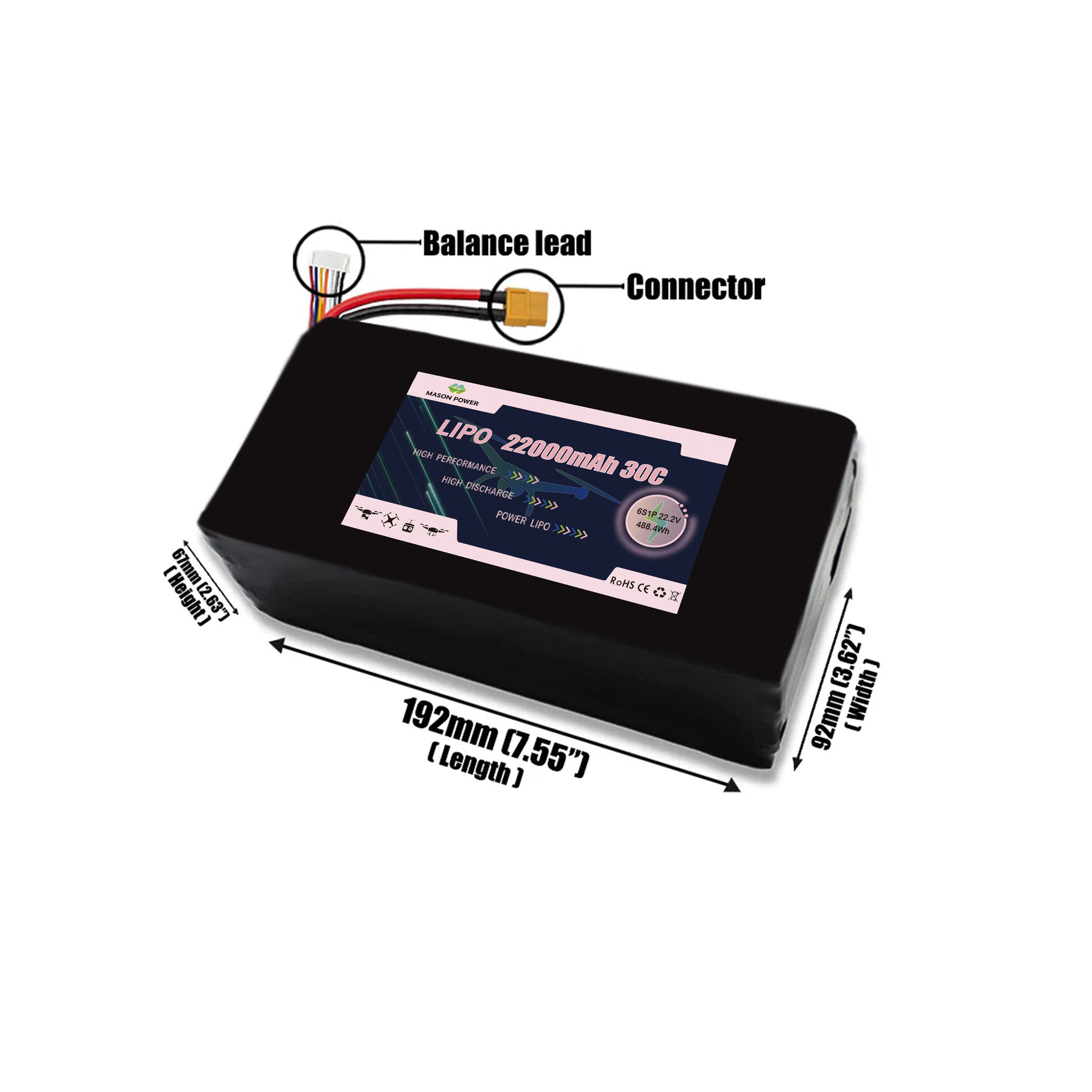

Dimensions(LXWXH)：192X92X67mm

Warranty：5 Year Limited Warranty

Applications

Drones suitable for a variety of application scenarios:
-Industrial inspection, small multi-wing inspection drones require high energy density + long life
-FPV racing and UAC drones require high-rate discharge + fast charging function
-Agricultural drones require large capacity + waterproof and dustproof
-Military and security drones require high temperature stability + explosion-proof
-Logistics and transportation require high power + vibration resistance

View full details

Why Choose Us?

  • Experience

    Years of industry experience ensure top-tier solutions.

  • Technology

    Cutting-edge LFP batteries for efficiency and durability.

  • Customization

    Tailored OEM and ODM services to meet your exact needs.

  • Support

    Comprehensive assistance from installation to maintenance.

  • Sustainability

    Eco-friendly solutions reducing carbon footprints.

  • Reliability

    Proven, rigorously tested products for lasting performance.

Frequently Asked Questions

What types of batteries are used in MasonPower’s energy storage systems?

MasonPower uses advanced Lithium Iron Phosphate (LFP) batteries, known for their high energy density, safety, and long cycle life.

Can MasonPower’s energy storage systems be customized to specific needs?

Yes, MasonPower offers customizable solutions through our OEM and ODM services to meet your specific energy storage requirements.

How does MasonPower ensure the safety of its energy storage products?

Our systems feature advanced Battery Management Systems (BMS) that monitor and protect against overcharge, over-discharge, and other safety risks.

What kind of warranty does MasonPower provide for its products?

MasonPower offers robust warranties, typically ranging from 5 to 10 years, depending on the product, ensuring long-term reliability.

Are MasonPower’s energy storage systems compatible with solar panels?

Absolutely. Our systems are designed to seamlessly integrate with solar panels, maximizing the use of renewable energy in your setup.
