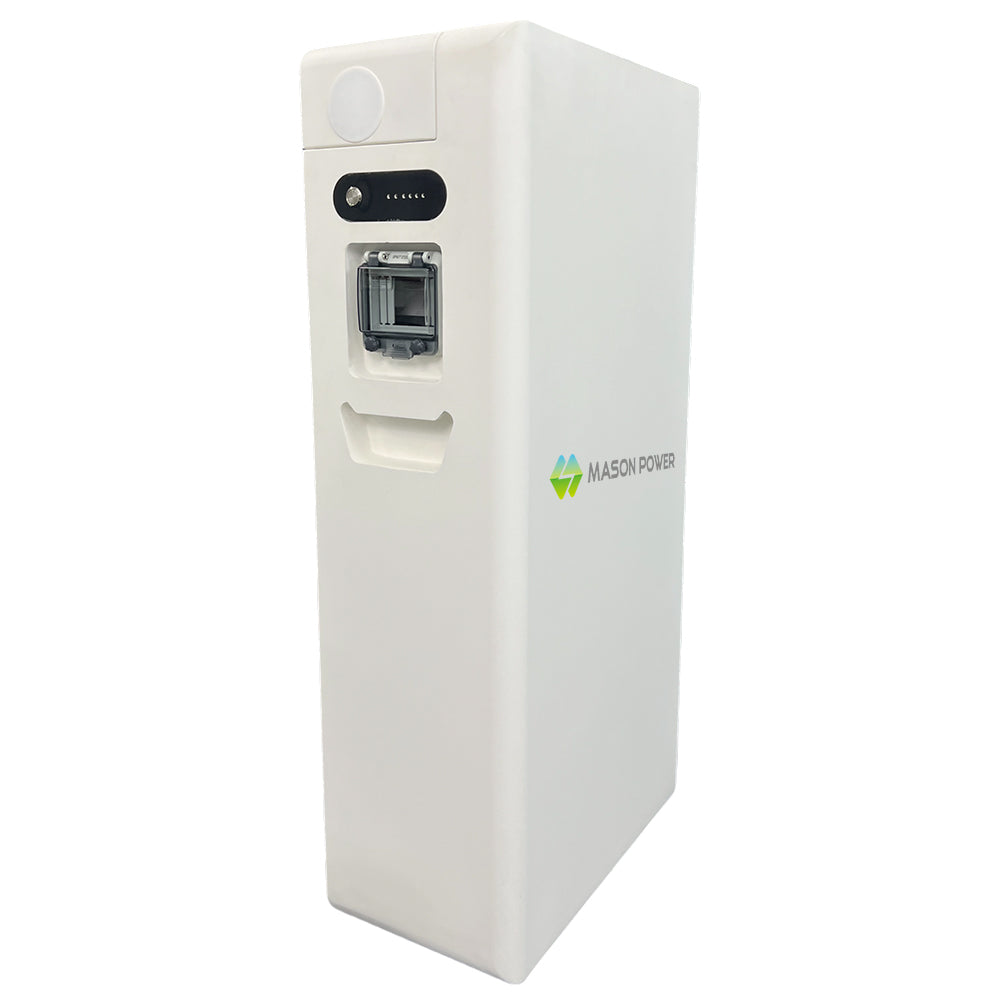

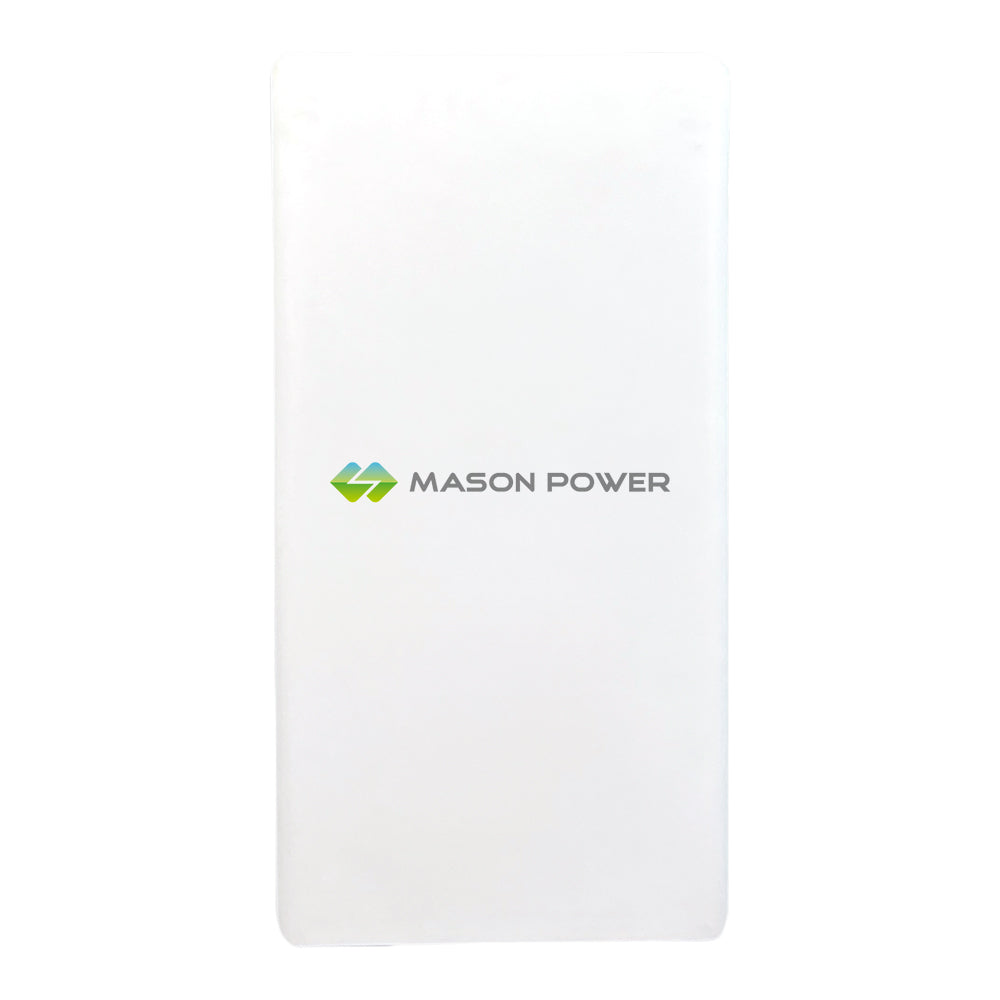

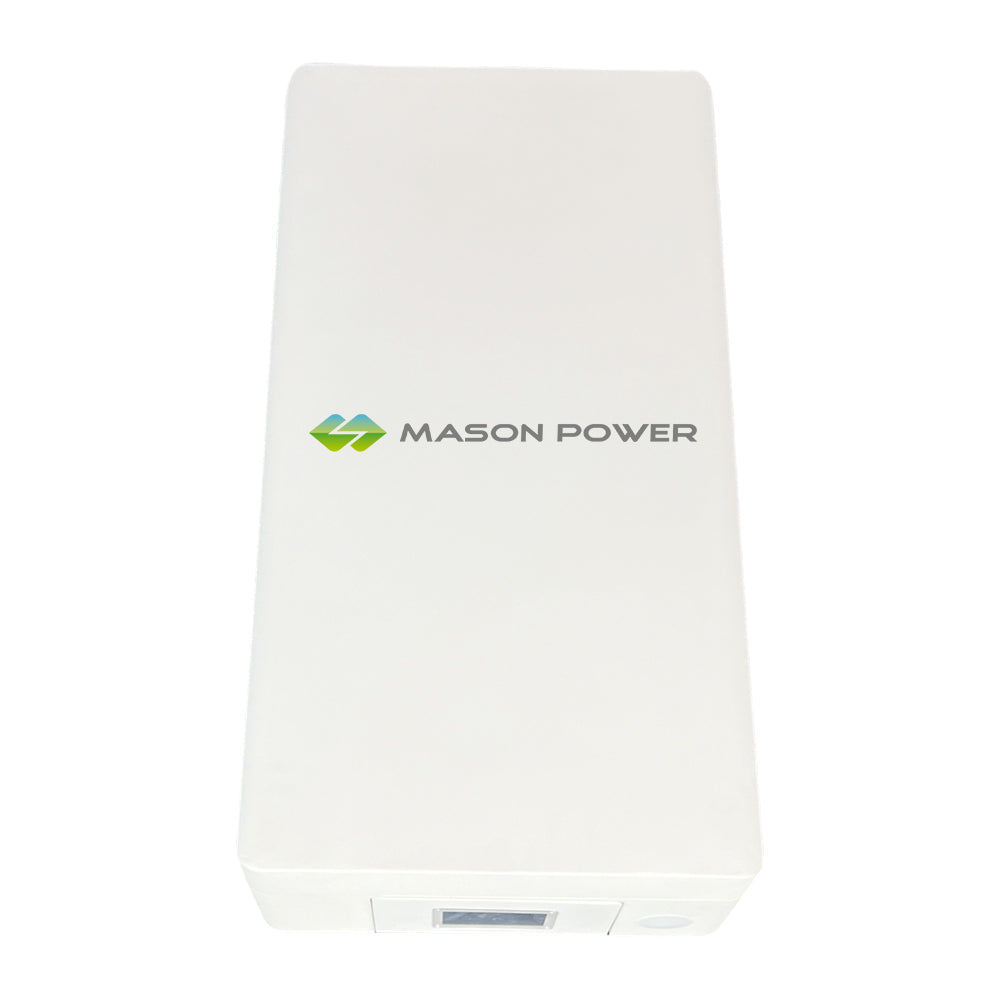

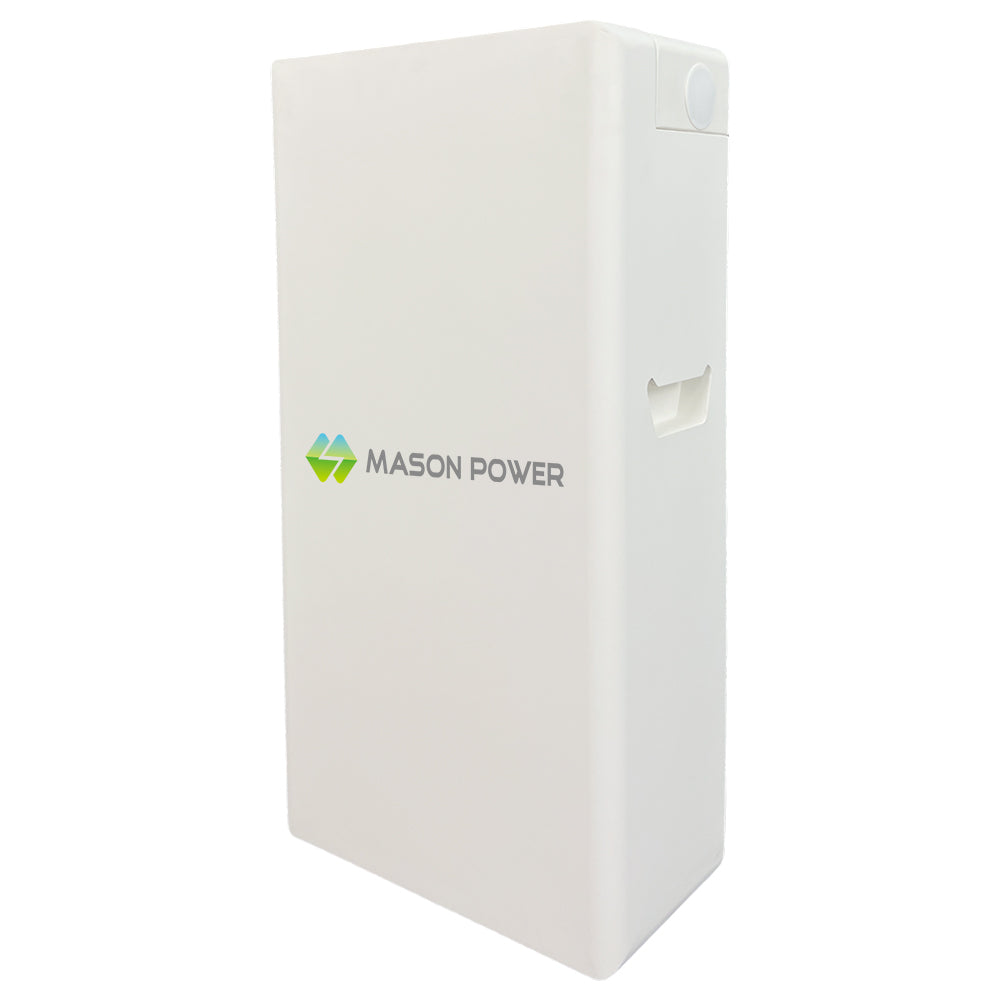

14.34kWh Wall-Mounted Battery Energy Storage System

14.34kWh Wall-Mounted Battery Energy Storage System

The 10.6kWh Wall-Mounted Battery Energy Storage System is designed to deliver reliable and safe energy storage solutions for both residential and commercial use. Utilizing high-performance LiFePO4 technology, this battery system ensures superior safety, longevity, and consistent performance across a wide range of operating conditions. With its sleek, wall-mounted design and advanced Battery Management System (BMS), it is an ideal choice for those seeking an efficient and durable energy storage solution.

Key Features

  • Capacity: 14.34kWh of energy storage, ideal for large-scale residential and commercial setups.
  • Battery Type: Lithium Iron Phosphate (LiFePO4) cells for enhanced safety and longevity.
  • Durability: Rated for over 6000 cycles, offering a long service life.
  • Safety: Equipped with a sophisticated Battery Management System (BMS) for protection against overcharge, over-discharge, overcurrent, short circuits, and temperature extremes.
  • Installation: Space-saving wall-mounted design, easy to install with comprehensive instructions.
  • Scalability: Supports parallel connection of up to 16 units to expand energy capacity as needed.
  • Communication: Features RS485 and CAN communication ports for seamless integration with energy management systems.

Tech Specs

  • Model: A11-015KYA1
  • Nominal Voltage: 51.2V
  • Capacity: 280Ah
  • Energy: 14.34kWh
  • Operating Voltage: 43.2-56.8V DC
  • Standard Charging Current: 140A @ 25°C
  • Maximum Continuous Charging Current: 200A @ 25°C
  • Standard Discharge Current: 140A @ 25°C
  • Maximum Continuous Discharge Current: 200A @ 25°C
  • Discharge Cut-off Voltage: 43.2V
  • Cycle Life: >6000 cycles
  • Charge Temperature: 0°C to 50°C
  • Discharge Temperature: -20°C to 55°C
  • Storage Temperature: -20°C to 55°C (recommended 25±3°C, ≤90%RH)
  • Dimensions (L x W x H): 908mm x 470mm x 262mm
  • Weight: 125±3kg
  • Certifications: CE, UL, UN38.3
  • Warranty: 5 years

Applications

  • Residential energy storage systems for backup power and solar energy integration.
  • Commercial energy management to optimize electricity usage and reduce costs.
  • Scalable energy storage for off-grid and hybrid power systems.
