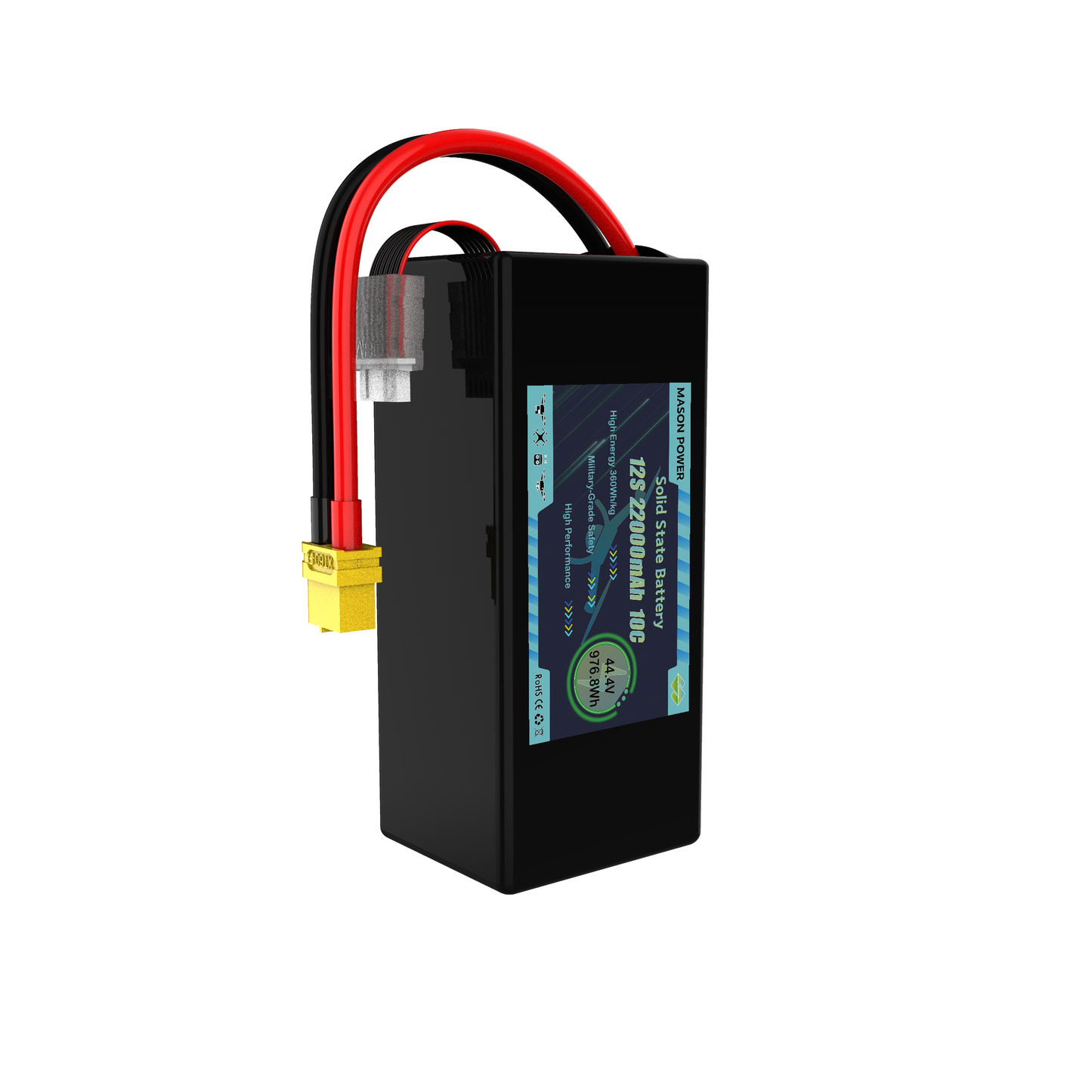

12S 22000mAh 44.4V Solid State Drone Battery Pack 360Wh/kg 10C High Performance Battery
12S 22000mAh 44.4V Solid State Drone Battery Pack 360Wh/kg 10C High Performance Battery
Why Choose Solid State LiPO Pack?
• Lightweight: With the same power, solid-state lipo drone batteries can effectively reduce the overall weight of drones, thereby improving the endurance and flight performance of drones, making them more flexible to perform various tasks.
• Good impact resistance: When subjected to impact or vibration, it can better absorb energy, reduce damage to the internal structure of the battery, and reduce the risk of battery failure due to bumps or accidental collisions during the flight of the drone.
• Good heat dissipation performance: When the drone is flying at high load and the battery is heated, it can more effectively conduct the heat away, avoid battery overheating, ensure the stability and safety of battery performance, and extend the battery life.
• High integration: Solid-state lipo batteries can be customized according to the internal space of the drone, better integrated with the structure of the drone, improve space utilization, and make the overall design of the drone more compact and reasonable.
Key Features
Key Features
1. High energy density: Solid state electrolytes allow for tighter battery designs that can store more energy at the same weight or volume. The energy density of some semi-solid drone batteries can reach 410Wh/kg, which can increase the flight time of drones by 20% -35% compared to standard batteries.
2. High safety: Solid state electrolytes are non flammable and non-volatile, effectively preventing the formation of lithium dendrites and eliminating safety hazards caused by electrolyte leakage, short circuits, etc. in liquid lithium batteries. They also have higher thermal stability.
3. Long cycle life: Solid state electrolytes have more stable chemical properties and lower interface resistance, which can reduce battery losses during charging and discharging processes. Some solid-state drone batteries have a cycle life of over 800 times, with stable long-term performance, reducing replacement costs and maintenance frequency.
4. Wide temperature range working ability: It can maintain stable performance output in a wider temperature range, generally able to work safely and stably in environments ranging from -40 ℃ to 60 ℃, ensuring the normal operation of drones in extremely cold or high temperature environments.
5. Fast charging: Support fast charging , which can fully charge within 20-60 minutes, significantly reducing charging time and improving work efficiency.
Tech Specs
Tech Specs
Name:MAS-SSB360-12S22000mAh
Type:Solid State Battery
Nominal voltage:44.4V
Max voltage:50.4V
Nominal capacity:22000mAh
Rated Energy:976.8Wh
Maximum continuous discharge:220A
Weight:3008g
Energy Density::360Wh/kg
Dimensions(LXWXH):102*75*190mm
Warranty:5 Year Limited Warranty
Applications
Applications
Drones suitable for a variety of application scenarios:
-Industrial inspection, small multi-wing inspection drones require high energy density + long life
-FPV racing and UAC drones require high-rate discharge + fast charging function
-Agricultural drones require large capacity + waterproof and dustproof
-Military and security drones require high temperature stability + explosion-proof
-Logistics and transportation require high power + vibration resistance
