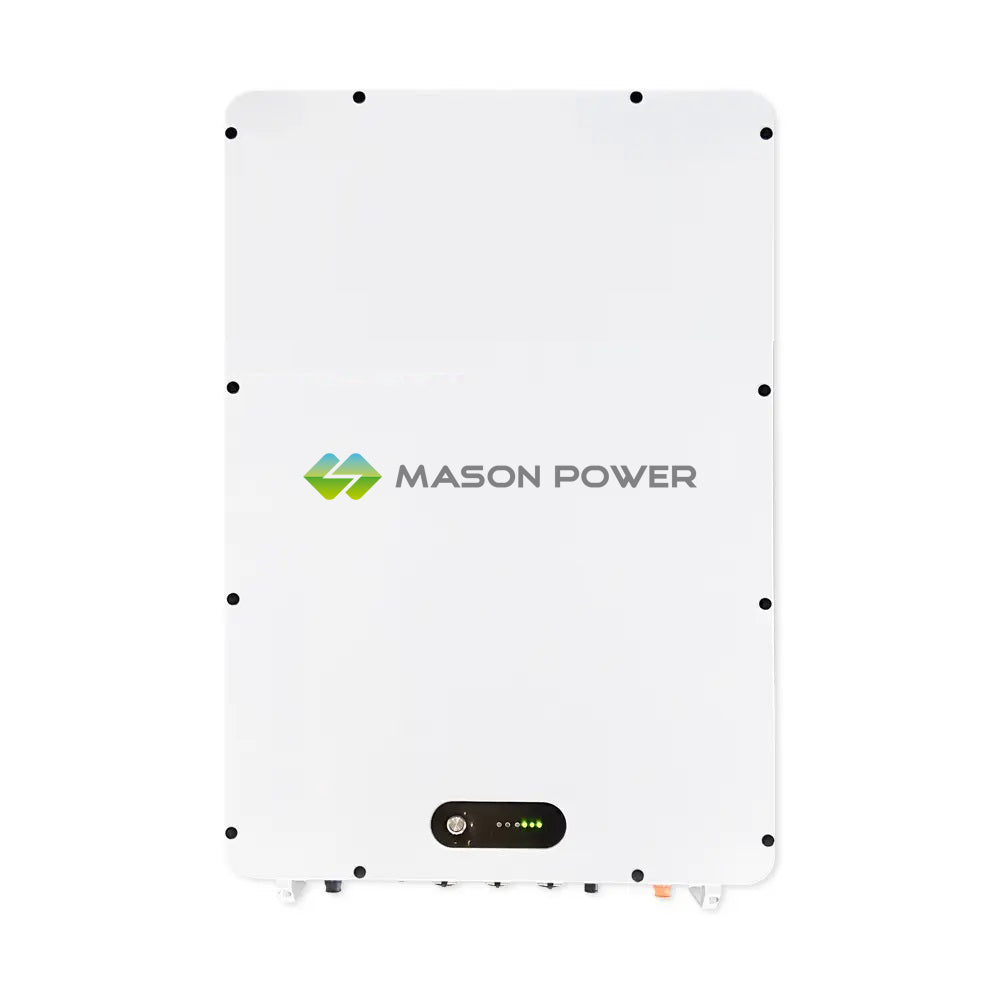

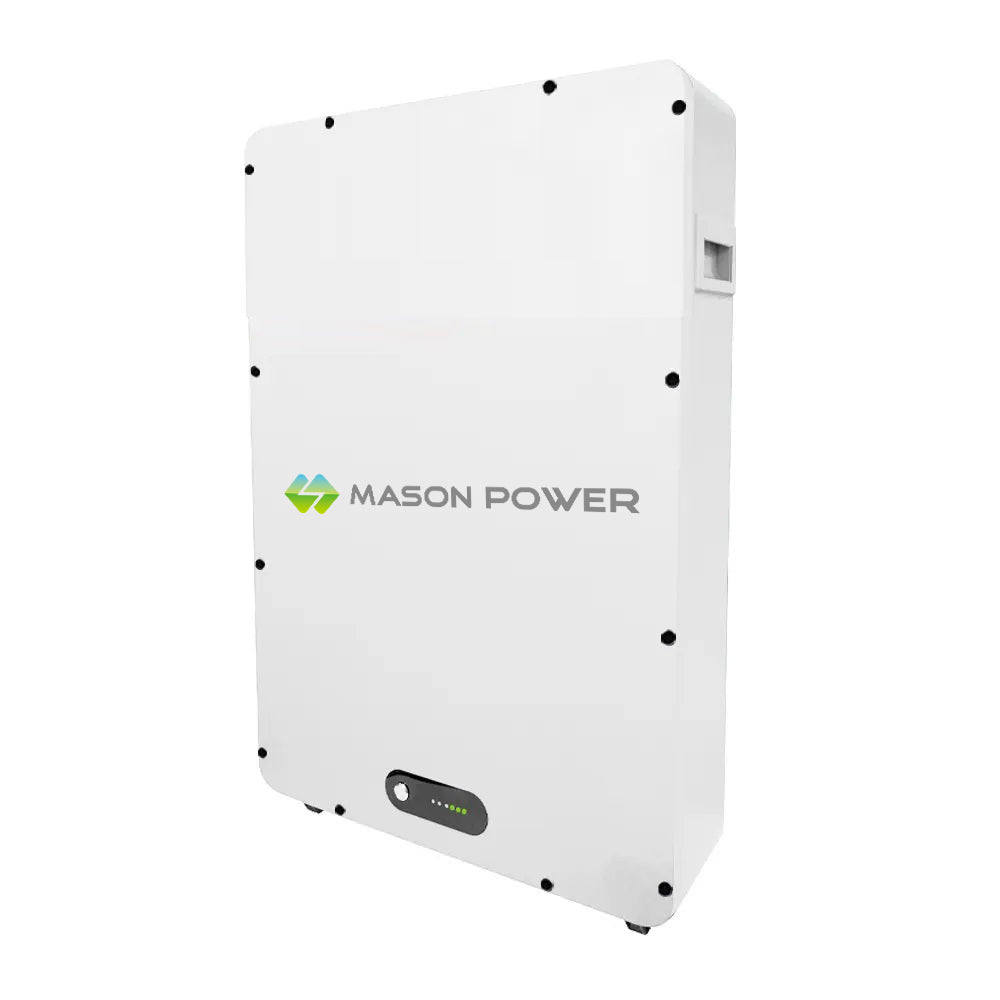

10.6kWh Wall-Mounted Battery Energy Storage System

10.6kWh Wall-Mounted Battery Energy Storage System

The 10.6kWh Wall-Mounted Battery Energy Storage System is designed to deliver reliable and safe energy storage solutions for both residential and commercial use. Utilizing high-performance LiFePO4 technology, this battery system ensures superior safety, longevity, and consistent performance across a wide range of operating conditions. With its sleek, wall-mounted design and advanced Battery Management System (BMS), it is an ideal choice for those seeking an efficient and durable energy storage solution.

Key Features

  • Capacity: 10.6kWh of energy storage, perfect for large-scale residential or commercial applications.
  • Battery Type: Lithium Iron Phosphate (LiFePO4) for enhanced safety and long service life.
  • Durability: Designed for over 3500 cycles, ensuring a long lifespan.
  • Safety: Integrated BMS provides protection against overcharge, over-discharge, overcurrent, short circuits, and extreme temperatures.
  • Installation: Easy wall-mounted installation with a slim, compact design.
  • Scalability: Can be expanded by connecting up to 16 units in parallel to meet growing energy needs.
  • Communication: Equipped with RS485 and CAN communication ports for seamless integration with inverters and monitoring systems.

Tech Specs

  • Model: 10.6kWh Battery Energy Storage System
  • Nominal Voltage: 51.2V
  • Capacity: 208Ah
  • Energy: 10.6kWh
  • Operating Voltage: 43.2-56.8V DC
  • Standard Charging Current: 90A @ 25°C
  • Maximum Continuous Charging Current: 100A @ 25°C
  • Standard Discharge Current: 90A @ 25°C
  • Maximum Continuous Discharge Current: 100A @ 25°C
  • Discharge Cut-off Voltage: 43.2V
  • Depth of Discharge (DOD): 80%
  • Life Cycles: >3500 cycles
  • Communication Ports: RS485, CAN
  • Display: LED indicators for system status and battery capacity
  • Charging Temperature: 3°C to 47°C
  • Discharging Temperature: -7°C to 47°C
  • Humidity: 5%-90%
  • Cooling: Natural heat dissipation
  • Installation: Wall-mounted
  • Certifications: CE, UL, UN38.3
  • Dimensions (W x D x H): 518mm x 762mm x 148mm
  • Weight: 85±3kg
  • Warranty: 5 years

Applications

  • Residential energy storage for backup power and solar integration.
  • Commercial energy management to reduce electricity costs and improve energy efficiency.
  • Scalable energy storage for off-grid and hybrid power systems.
View full details

Why Choose Us?

  •  Cell & Pack Design

    We can design the cell chemistry and pack layout to meet specific size, weight, and power requirements.

  •  Connector & Wiring

    Choose from a variety of connectors including XT60, XT90, AS150U, QS8, and custom wiring harnesses.

  •  Labeling & Branding

    We offer private labeling services to match your brand identity.

  •  Small Batch Prototyping

    Fast turnaround on samples for testing and validation before mass production.

  •  Strict Quality Control

    100% testing on voltage, internal resistance, and capacity before shipment.

  •  Professional Packaging

    Shockproof packaging ensures safe delivery.

Frequently Asked Questions

What is the minimum order quantity (MOQ) for battery packs?

Sample orders: 1-10 pcs for evaluation and testing. Bulk orders: MOQ starts from 100 pcs for standard models, negotiable for custom configurations.

What is your monthly production capacity?

Cylindrical battery packs: 1,000,000 units/month. Soft pack and solid state battery packs: 500,000 units/month.

How do you control quality?

100% cell sorting, capacity grading, and internal resistance matching
100% voltage and IR testing before assembly
100% functional testing after assembly (charge/discharge cycle, protection test)
Every pack undergoes rigorous testing before shipment
Full traceability with unique QR code per pack

Do you offer samples?

Yes. Sample orders are welcome for testing and validation. Samples can be shipped from our overseas warehouses for faster delivery.

How do I get a quote?

Please send your requirements including voltage, capacity, discharge rate, dimensions, connector type, and quantity. We will reply within 1 hours with a detailed quotation.
